Woodpeckers HexScale Rule 12-in. with Stop (HXSCL-12)
Woodpeckers HexScale Rule 12-in. with Stop (HXSCL-12)
Out of Stock - Available to Order - Usually ships in 20-30 days
Product Details
Product Details
Key Features
Overview

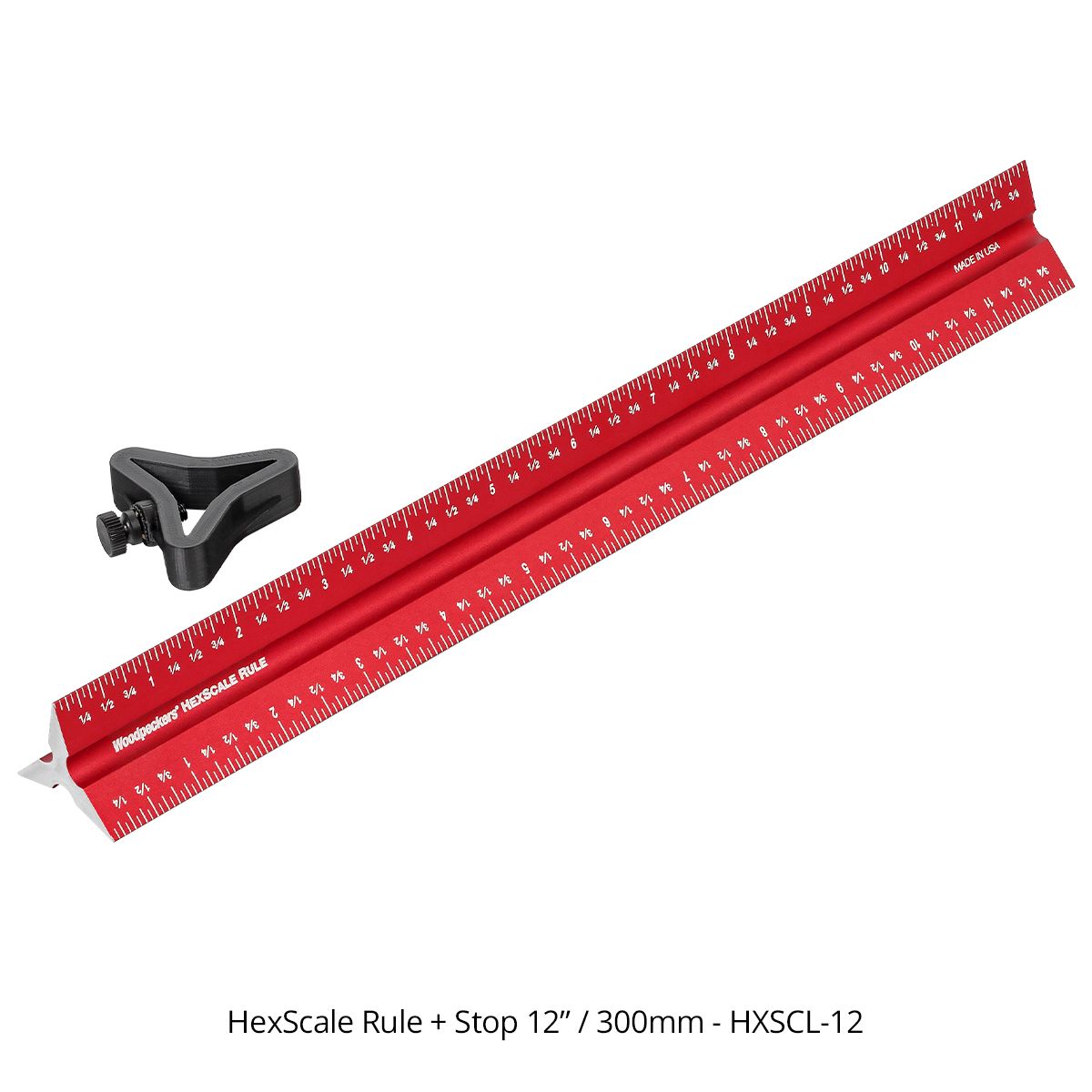

The Woodpeckers HXSCL-12 HexScale Rule 12" (300mm) w/ Stop is a precision layout rule built for woodworking measurement, marking, and center finding. This is a measuring and layout rule designed for accurate shop and bench-top marking work. Model HXSCL-12 gives you a 12 inch / 300 millimeter format that works well for cabinet parts, hardware layout, joinery setup, and general bench work where a full-length framing rule would just get in the way.
What makes the HexScale different is simple: it puts six useful scales into one tool. You get left-to-right reading, right-to-left reading, and centering scales, and each of those is available in both inch and metric graduations. In day-to-day use, that means you can measure from the edge that makes sense for the setup instead of flipping a rule around or doing mental math. When you need to find the center of a board, the centering scale takes the guesswork out of it. Line up equal measurements at both edges and the zero lands at center.
The included stop is a big part of why this rule is more than just another straightedge. Slide the stop onto the HexScale, set your dimension, and you can make repeated marks on matching parts without resetting every time. That saves time when you are laying out shelf pin locations, hinge offsets, repeated mortise positions, or any run of identical parts. For small-batch cabinet work and furniture parts, that repeatability is the feature that earns its keep fast.
Woodpeckers builds the HexScale as a machined aluminum rule, not a throwaway stamped measuring tool. The profile is designed to support the different scale faces while still giving you a practical edge for layout work. Because the scales are organized so that inch and metric are paired by rotation, switching units is straightforward. If you are working between plans, hardware specs, and machinery setups that mix systems, that layout is genuinely useful instead of gimmicky.
At 12 inches, this version hits a sweet spot for a lot of woodworkers. It is long enough for most parts you handle at the bench, but short enough to stay handy and quick to position. The 6 inch model is better for tiny setup work, and the 24 inch or 36 inch sizes make more sense for larger panels and long layout lines, but the 12 inch HexScale is the one many users will reach for most often because it covers the broad middle ground so well.
Woodpeckers also notes that the HexScale Rules are precisely machined and carefully inspected in Strongsville, Ohio. That matters because layout tools live or die by consistency. If the graduations are easy to read, the profile sits well against the work, and the stop locks in reliably, you work faster and trust the mark. That is what separates a real shop tool from something that looks clever in a catalog and then stays in a drawer.
This Woodpeckers measuring and layout rule is a strong fit for cabinetmakers, furniture builders, trim carpenters, and serious DIY woodworkers who want one rule that handles multiple measuring directions and center marking without extra steps. If your work involves repeated offsets, hardware location, small-part layout, or switching between inch and metric, this tool makes a lot of sense. If you only need a basic straight ruler, it is more tool than you need. If layout accuracy is part of how you make money or protect your time in the shop, it is exactly the kind of upgrade you notice right away.
Faster Layout Without Extra Math
The whole point of the HexScale setup is to keep your measuring tool working with the job instead of against it. You can read from either direction, switch to center finding, and move between inch and metric without grabbing a second rule.
- Combines left-to-right, right-to-left, and centering scales in one rule
- Includes both inch and metric graduations for mixed-unit shop work
- Comes with a stop for repeated marks on matching parts
What's in the Box
- (1) Woodpeckers HexScale Rule 12" / 300mm
- (1) Sliding stop
Key Specifications
| Tool Type | Measuring & Layout Rule |
|---|---|
| Length | 12 in |
| Metric Length | 300 mm |
| Scale Options | 6 rules in 1 |
| Reading Directions | Left-to-Right, Right-to-Left, Centering |
| Units | Inch and Metric |
| Material | Aluminum |
| Made In | USA |
Built For
Pro Tip
When you are laying out centerlines on small stock, use the centering scale first and then leave the stop locked for repeated parts. It is a quick way to keep hardware or joinery locations consistent across a full run without stacking up measuring errors.
Tool Nut's Take
Woodpeckers HXSCL-12 HexScale Rule 12" (300mm) w/ Stop is the kind of layout tool you actually keep within arm's reach
If you do careful bench work, this rule cuts out the annoying part of measuring: flipping tools around, converting units, and hunting for center.
- Who it's for: Woodworkers, cabinet guys, furniture builders, and detail-focused DIY users who care about accurate layout and repeatability.
- Why it stands out: The six-scale design is genuinely useful, and the included stop makes it much more practical for production-style marking than a standard rule.
- Worth knowing: This is a 12 inch shop layout rule, not a long straightedge. It shines on bench parts, hardware work, and joinery setup more than big panel layout.
Common Questions
- What does "6 rules in 1" mean? It means the HexScale combines left-to-right, right-to-left, and centering scales, with each of those available in both inch and metric graduations.
- Is this rule only for inch measurements? No. The Woodpeckers HXSCL-12 includes both inch and metric scales.
- Where is this rule made? Woodpeckers states that the HexScale Rules are precisely machined and inspected in Strongsville, Ohio, USA.
- What kind of work is the 12 inch size best for? The 12 inch / 300 mm size is well suited to bench work such as cabinetry, furniture parts, hardware layout, and joinery marking.
