Woodpeckers SS4K-CR Stealthstop 4' Kit - Combination, Right
Woodpeckers SS4K-CR Stealthstop 4' Kit - Combination, Right
In Stock - Ready to Ship
Product Details
Product Details
Key Features
Overview
The Woodpeckers SS4K-CR Stealthstop 4' Kit - Combination, Right is a micro-adjustable flip stop system built around a 4-foot track and precision stops for repeatable length cuts. This is a micro-adjustable flip stop designed for setting consistent stop lengths on a miter saw station and other cut-to-length setups. Model Number: SS4K-CR.
The whole idea is simple: stops beat pencil lines when you are cutting multiples. StealthStop rides inside the miter gauge slot of Woodpeckers Combo Track, so it stays protected and low profile. Slide it where you want, lock it with a hex key, and you are ready to run parts with the same length over and over.
When you need the fence clear, the stop flips down and stays contained inside the slot. Flip it back out and it locks square to the track so your workpiece hits the same reference every time. The micro-adjuster thumbwheel is there for the real-world stuff: dialing in a tight fit without having to rework your whole setup.
Woodpeckers designed the system to be easy to adapt instead of being a project that never gets finished. The track can be mounted vertically like a familiar back fence, mounted flush horizontally into a table surface, or stacked with a vertical track on top of a horizontal one using right-angle brackets. The goal is to match how you actually build your station, not force you into one layout.
Materials are chosen for shop life, not shelf life. The main components are injection-molded, glass-reinforced polycarbonate. Internal parts are stainless or zinc-plated, and the thumbwheel is turned brass, so the adjustment stays smooth with low maintenance and good rust resistance.
This is the right-side configuration, meaning the included tape orientation is made for a right-side installation (tape reads in the direction intended for that side). If you do production-style cabinet parts, trim, or furniture components where repeatability matters, this is one of those upgrades you feel on day one.
Fast, Repeatable Stop Cuts
Set a stop once, cut a stack of parts, and stop measuring every board. The flip stop gives you a consistent reference so your parts match without babysitting the tape.
- Flip stop folds down into the track slot when you need clearance
- Designed to lock square to the track when flipped out for accurate registration

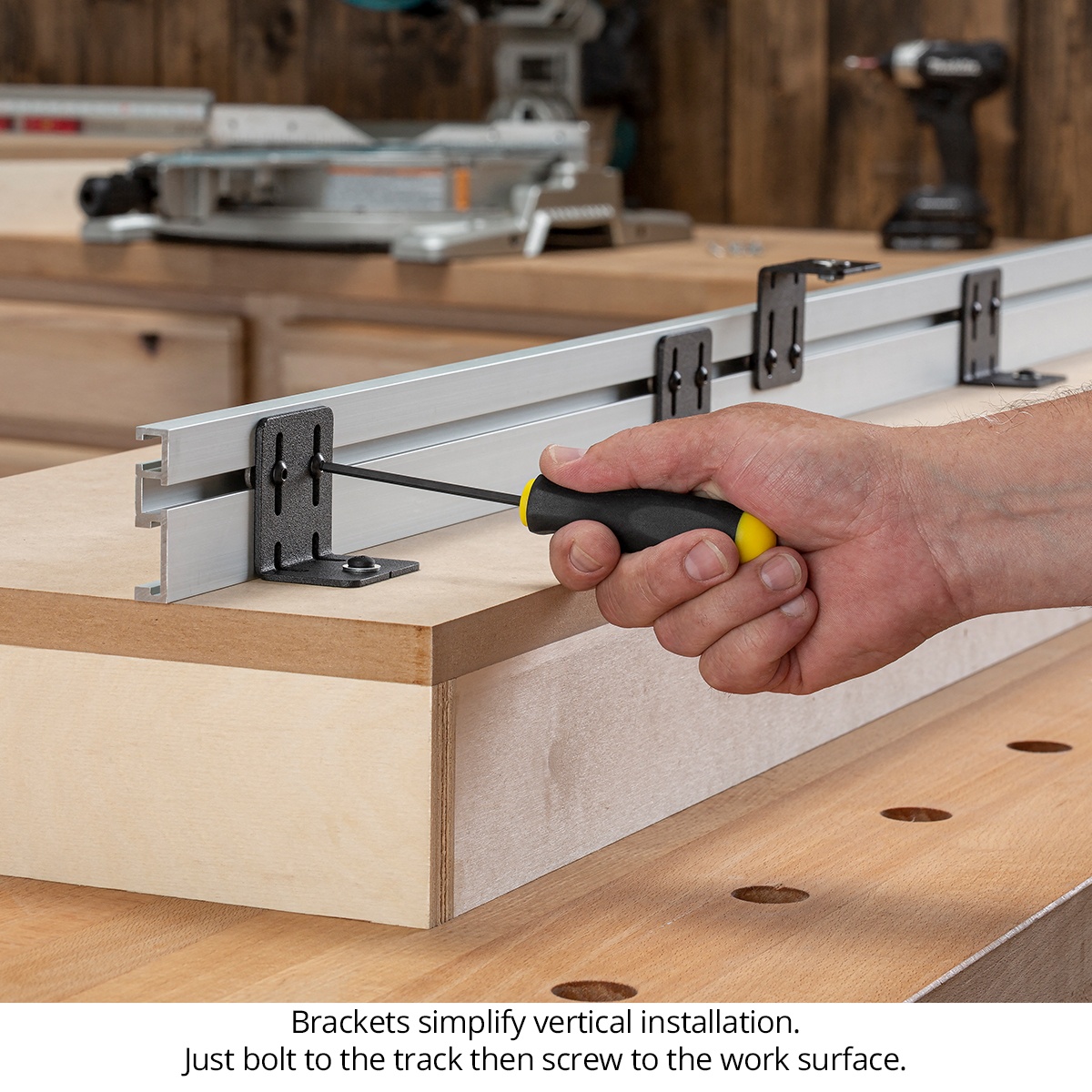

Simple Vertical Mounting
If you want the familiar "fence with a stop" setup, the vertical mount is the straightforward route. Brackets slide into the back of the track and screw down to your surface.
- Mounting brackets are designed to make setup quick and rigid
- Hex key locking lets you slide the stop, then clamp it down firmly

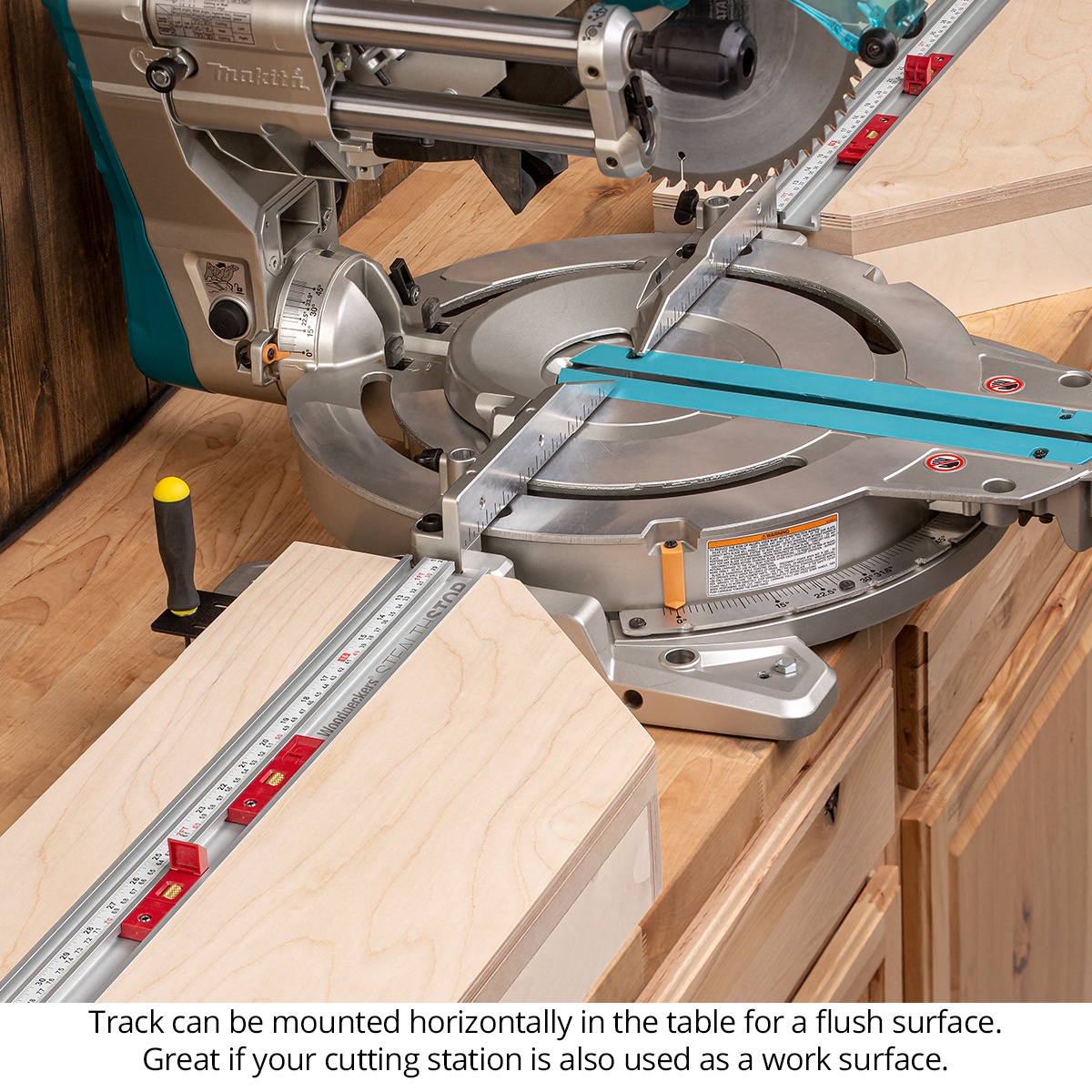

Flush Mount for a Flat Work Surface
If your cut station doubles as an assembly or work table, flush mounting keeps the top usable. The track sits in a recessed channel so parts slide over it without catching.
- Horizontal flush mount option supports a smooth, continuous surface
- Useful when your station has to do more than one job

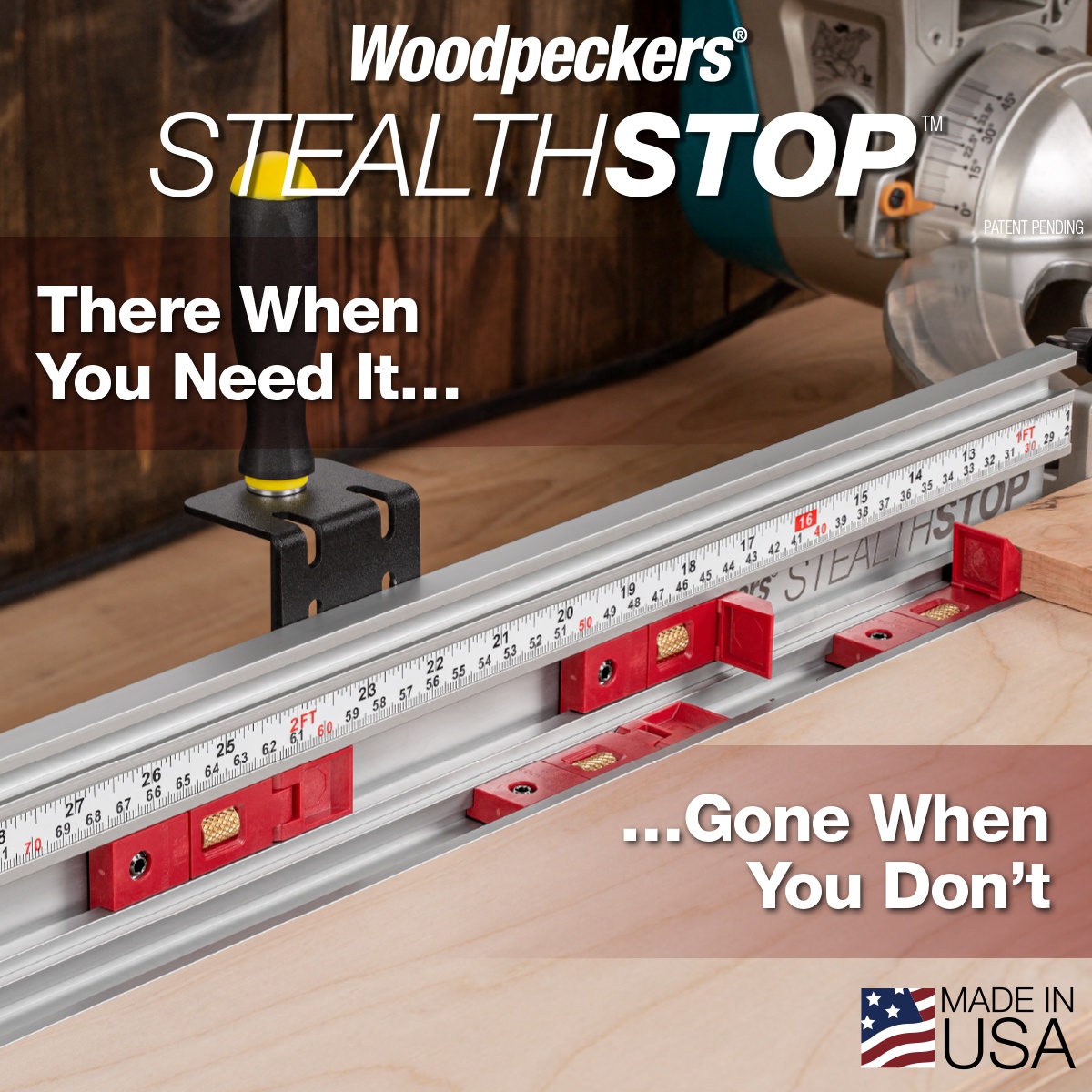

Stops That Disappear When You Need Space
A stop is only helpful when it is not in the way. The StealthStop design keeps the stop contained within the slot when folded down so you can run long or awkward stock without snagging.
- Flip-down design keeps the stop protected inside the track
- Flip-out position is intended to lock square and rigid for stop work
What's in the Box
- (1) 4 ft track
- (5) mounting brackets
- (2) stops
- (1) combination inch/metric adhesive tape
- (1) 1/8 in screwdriver-handled hex key
- Mounting hardware
Key Specifications
 Model |
SS4K-CR |
|---|---|
|
Track Length |
4 ft |
 Weight |
7.0 lb |
 Primary Materials |
Glass-reinforced polycarbonate body; stainless or zinc-plated internals; brass micro-adjust thumbwheel |
 Stops Included |
2 |
 Mounting Brackets Included |
5 |
|
Tape |
Combination inch/metric (right-side orientation) |
 Made In |
USA (Strongsville, Ohio) |
Compatibility
Built For
Pro Tip

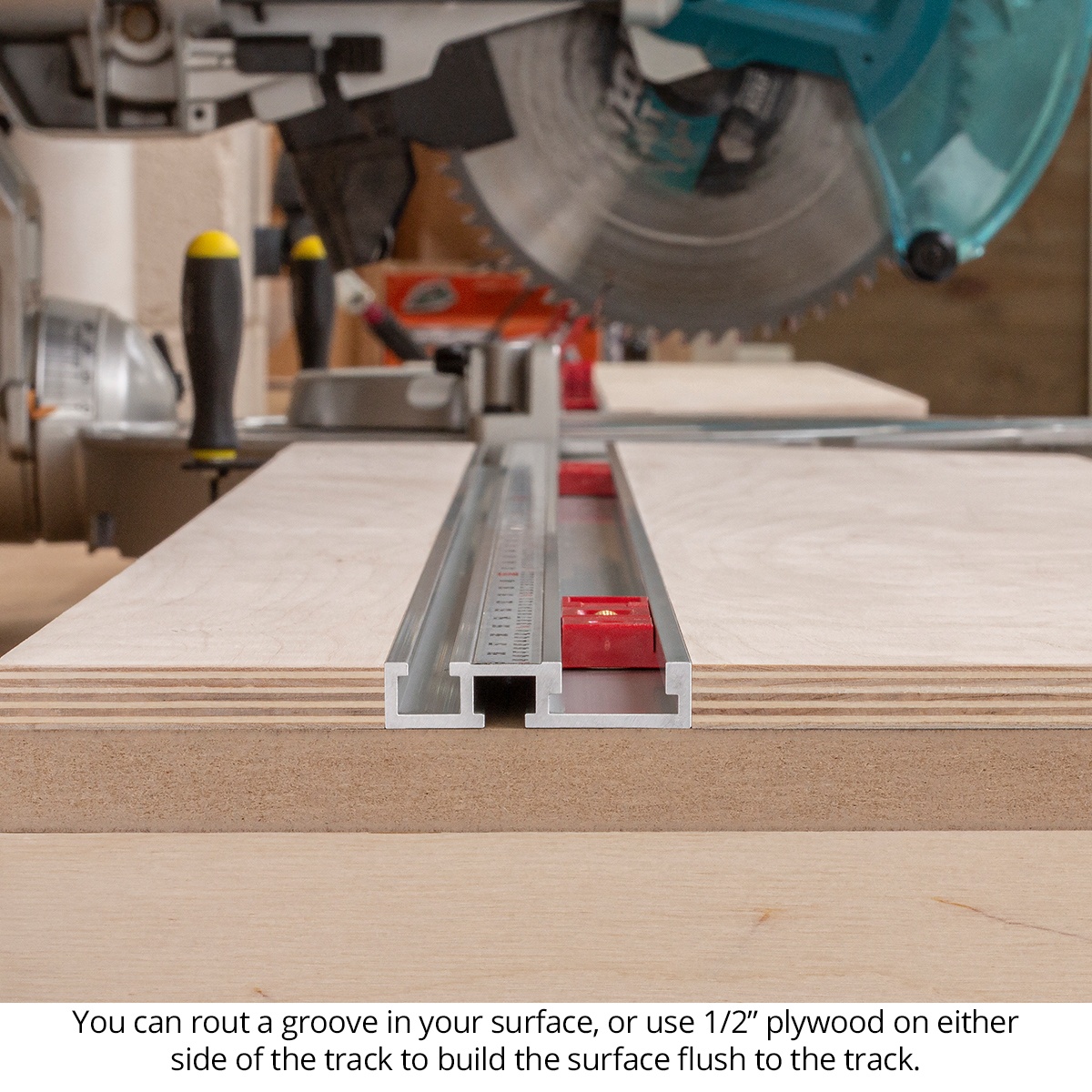

If you want the track flush with your station top, route a 1/2 in deep groove, or build up both sides with 1/2 in plywood so the track sits "buried" without cutting into your table.
Tool Nut's Take
Woodpeckers SS4K-CR Stealthstop 4' Kit - Combination, Right is built for repeat work
If you cut multiples, this is the kind of stop system that turns "close enough" into parts that actually match.
- Who it's for: Woodworkers and remodelers who run batch cuts on a miter saw station and want stop accuracy without a bulky fence add-on.
- Why it stands out: The stop folds into the slot and still gives you micro-adjust control when it is flipped out and locked.
- Worth knowing: This is the right-side kit, so make sure your station layout matches the tape direction you want before you commit.
Common Questions
- Can this track be mounted flush into a table surface? Yes. The system supports horizontal flush mounting, including routing a 1/2 in deep groove or using 1/2 in plywood on both sides to create a flush surface.
- How does the stop lock in place? The stop glides in the track and locks with a twist of a hex key; a 1/8 in screwdriver-handled hex key is included.
- What makes this the "Right" kit? The included tape orientation is intended for right-side installation (the tape reads in the direction designed for that side).
