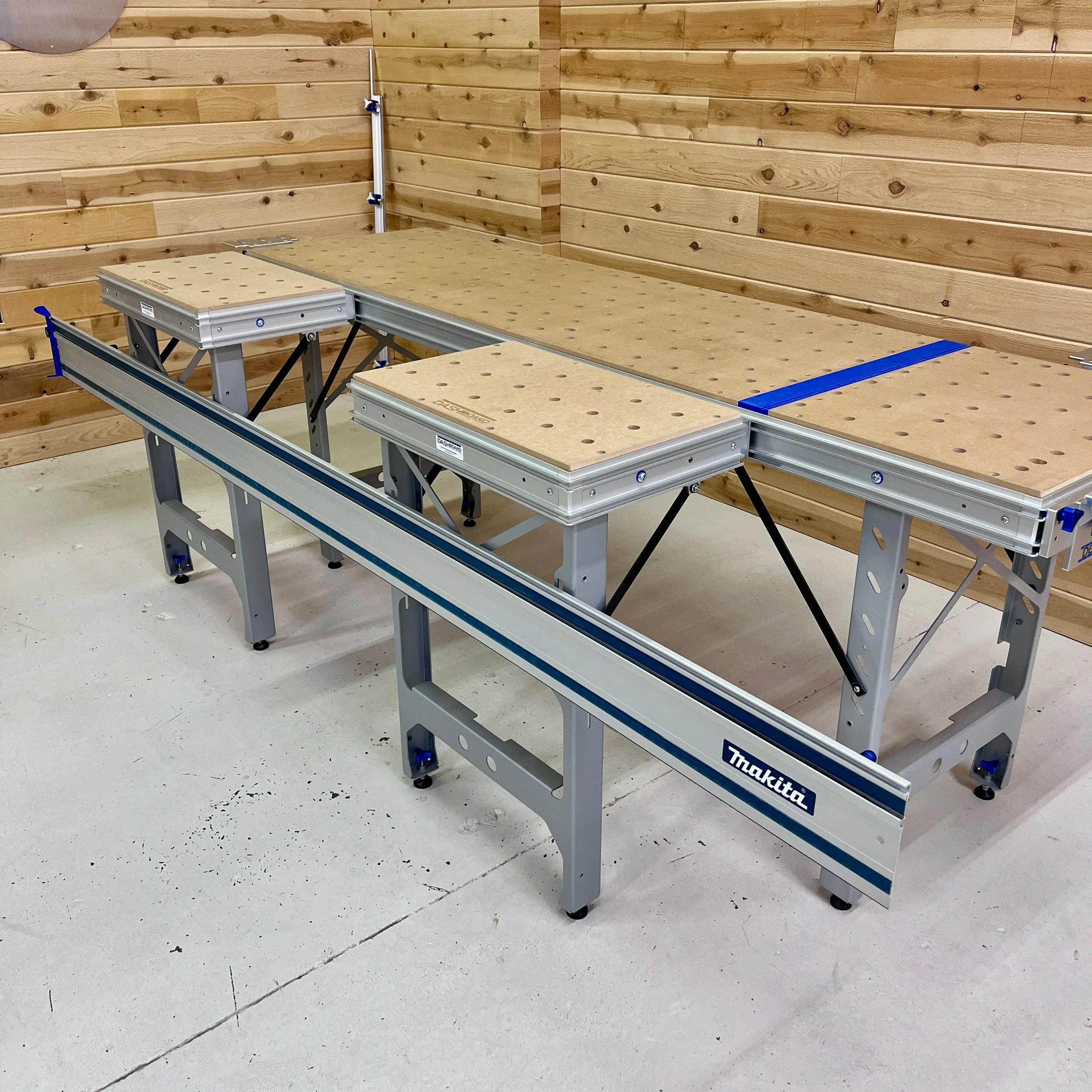

Full-Sheet Plywood Cutting System for Track Saws

The Outrigger Bundle extends your Dash-Board or Festool MFT-style bench to break down full 4x8 sheets of plywood with a track saw, with no second helper and no sagging offcuts. It gives MFT owners true sheet-goods capacity in a portable footprint that sets up and breaks down without tools.

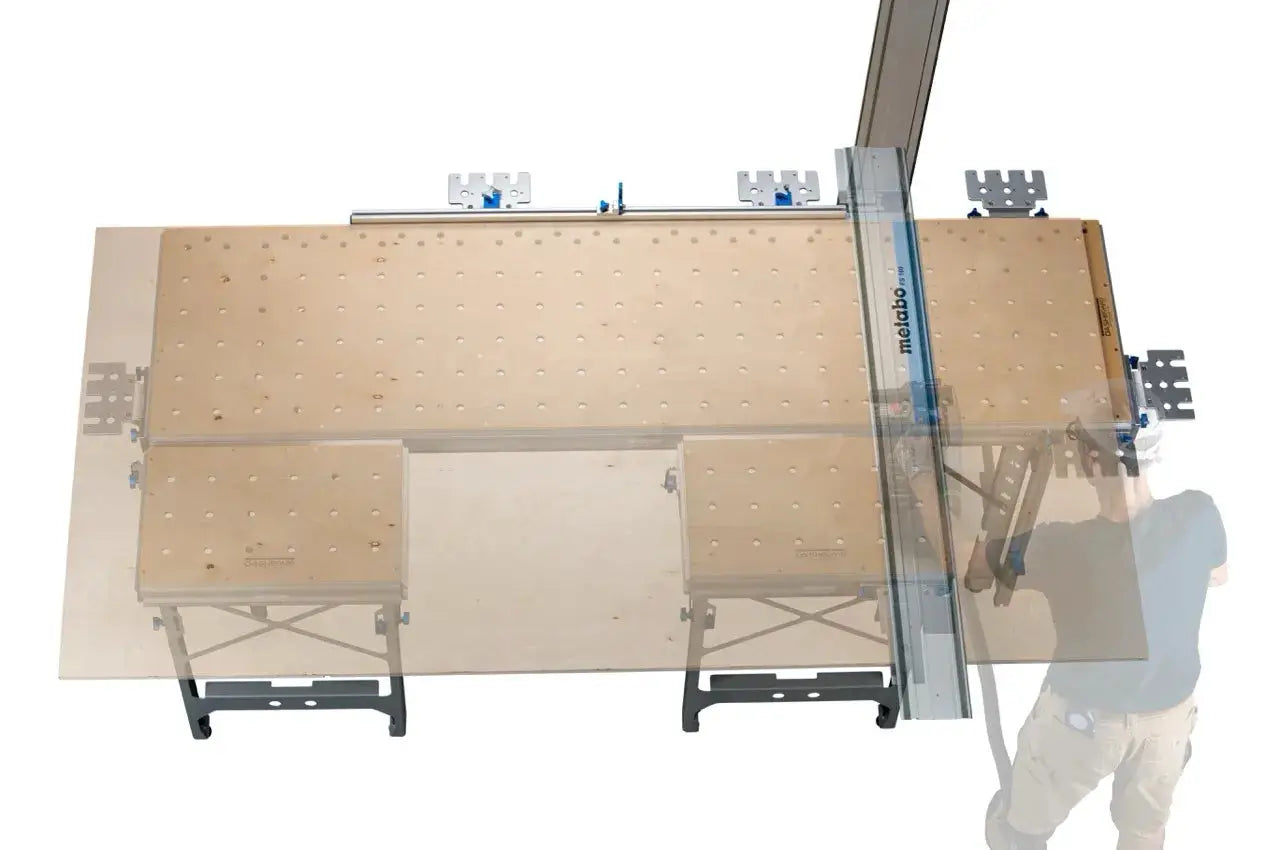

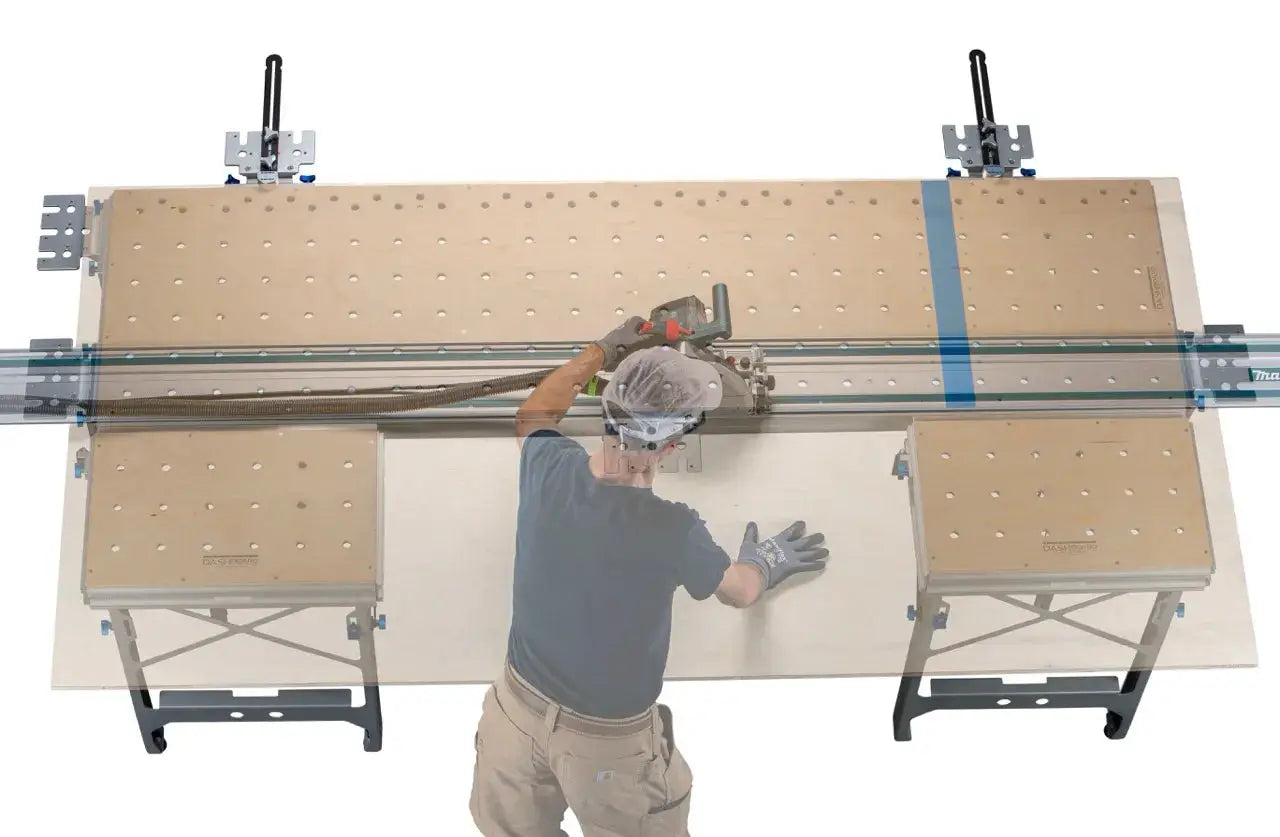

Full sheets. Crosscuts, rips, and accurate splits.

The Outrigger Bundle is the configuration that turns a compatible portable workbench into a true full-sheet processing platform. Designed to process 4x8 sheets with an intentional gap between the bench and the Outriggers, so all you cut is the material and air beneath it, never the bench. Crosscut full sheets to dimension. Rip full sheets along their long axis. Accurately split full sheets into matched halves or sections.

• Full-sheet crosscuts
• Full-sheet rips
• Accurate splits and dimensional sheet breakdown
• Offcut support across the extended platform

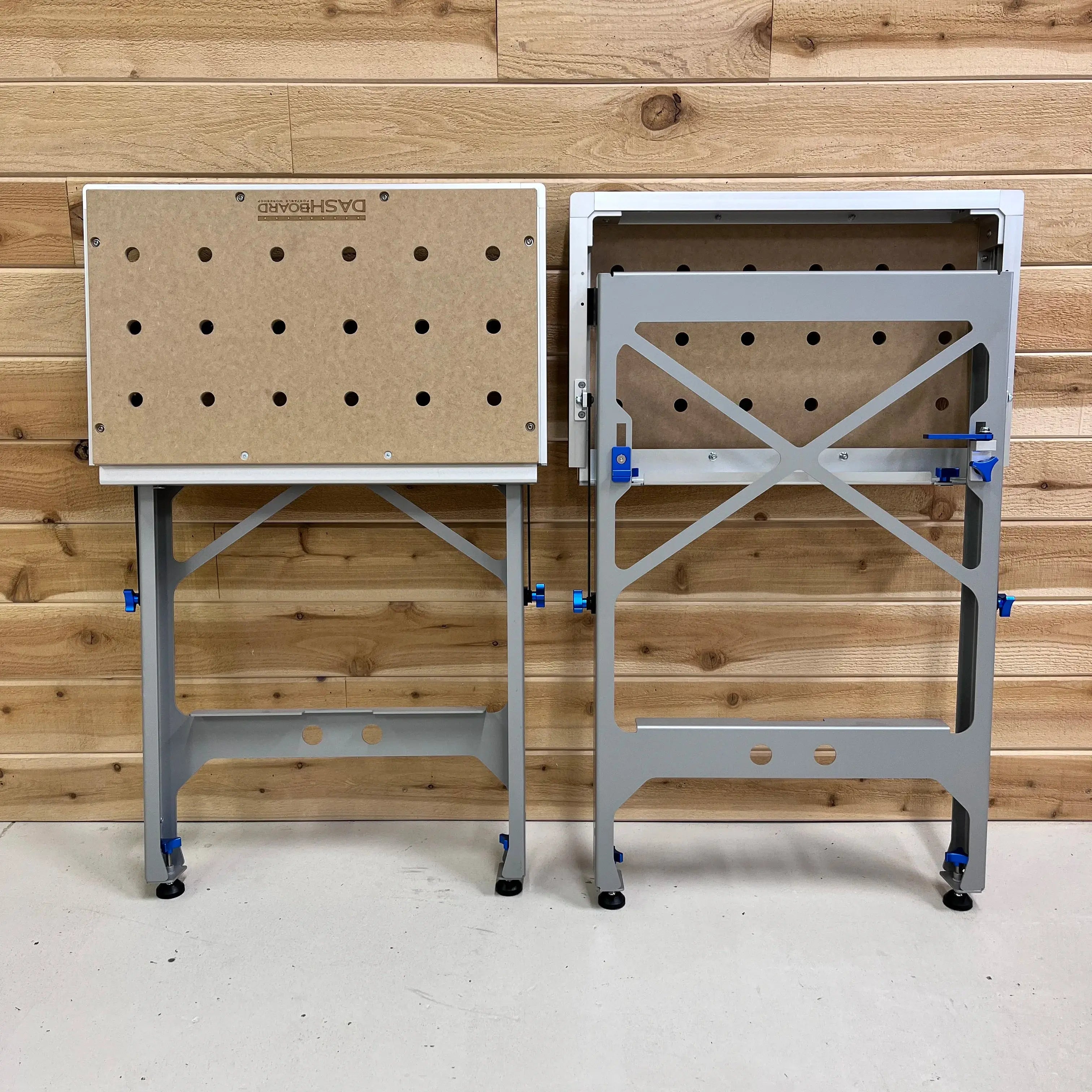

Folds up. Stores against a wall.

The defining feature of the Outrigger is the folding leg design. Each Outrigger collapses flat for storage, fitting against a shop wall or in a vehicle, without giving up structural strength when deployed. Each unit is the same width as the Dash-Board bench (15.875" front-to-back) with a 24.5" length. Leg levelers handle uneven surfaces, and the work surface tunes flush with your bench top using tool-free hardware.

• Folding leg design collapses flat for storage
• Same depth as the Dash-Board (15.875")
• Leg levelers handle uneven surfaces
• Work surface tunes flush with your bench

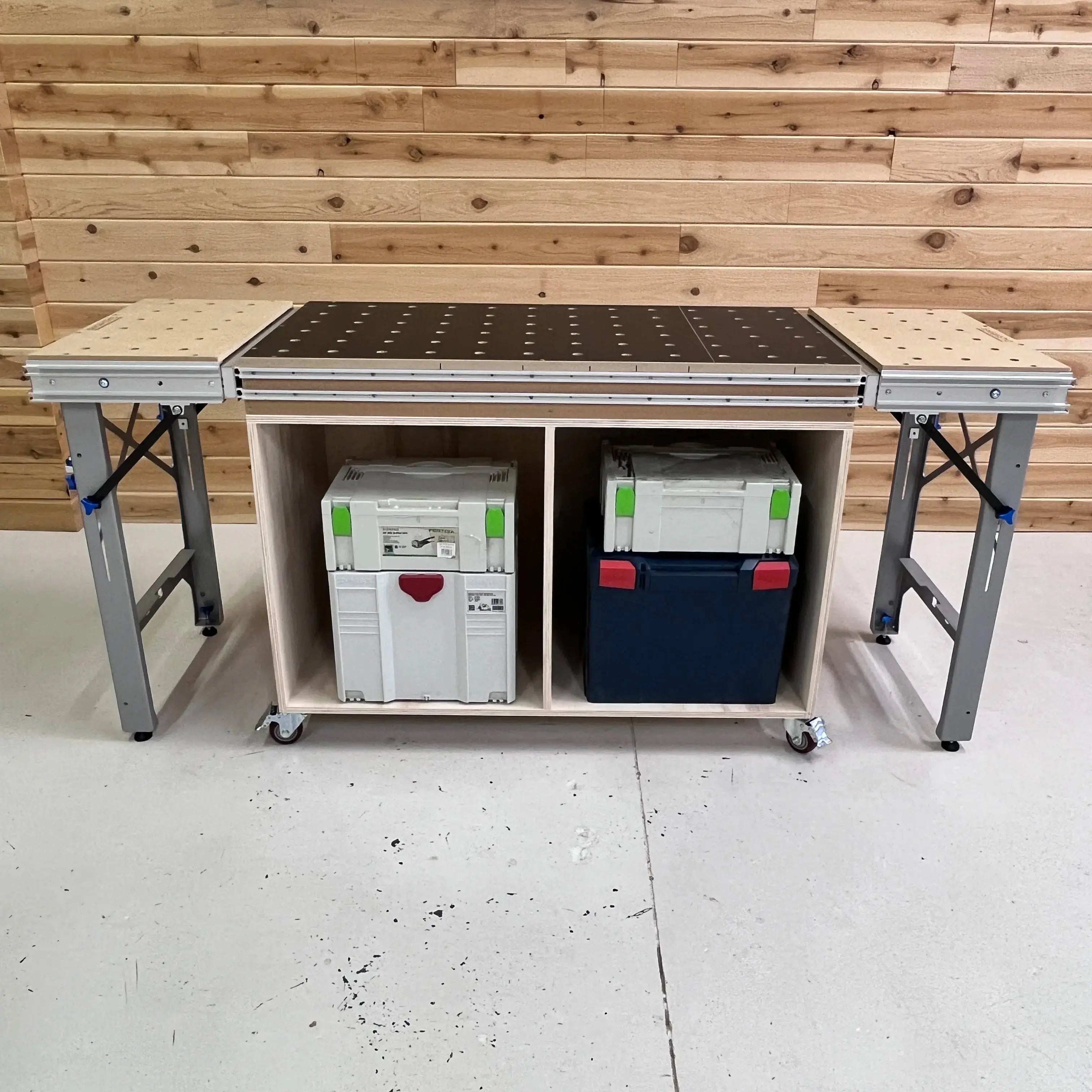

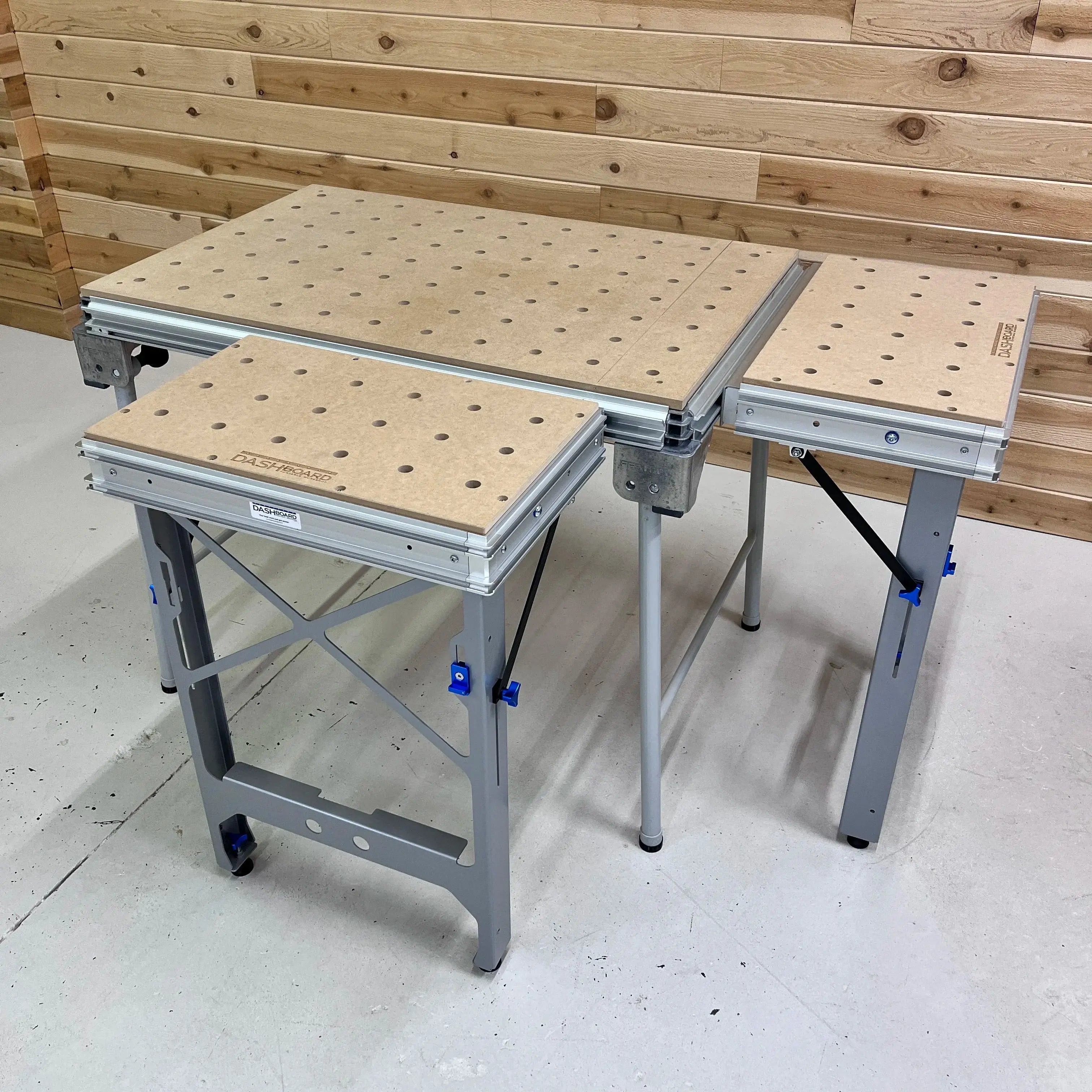

Works with the bench you already own.

The Outrigger is one of the most universally compatible products in the Dash-Board line. It mounts to the Dash-Board, ShortCut, Festool MFT3, Festool 1080, Benchdogs Ultra MFT, Kreg ACS, TrackTubes, T-slot extrusion tables (minimum 8mm slot), wood-frame tables with standard T-track, and DIY benches at the recommended 35.5" to 36" working height.

• Dash-Board and ShortCut benches
• Festool MFT3 and 1080
• Benchdogs Ultra MFT, Kreg ACS, TrackTubes
• T-slot extrusion tables, T-track tables, DIY benches at 35.5"-36" height

Rip Stops. Rail Hangers. Built into the design.

The Outrigger Bundle isn't just two folding platforms. It includes 2 Rip Stops and 2 Rail Hangers. The pair of Rip Stops act as a fence for accurate rips on the right side of the blade. The Rail Hangers store your guide rail between cuts, off the work surface and ready to grab.

• 2 Outriggers (folding platforms)
• 2 Rip Stops (right-of-blade cut setting)
• 2 Rail Hangers (guide rail storage)
• Complete capability upgrade in one bundle

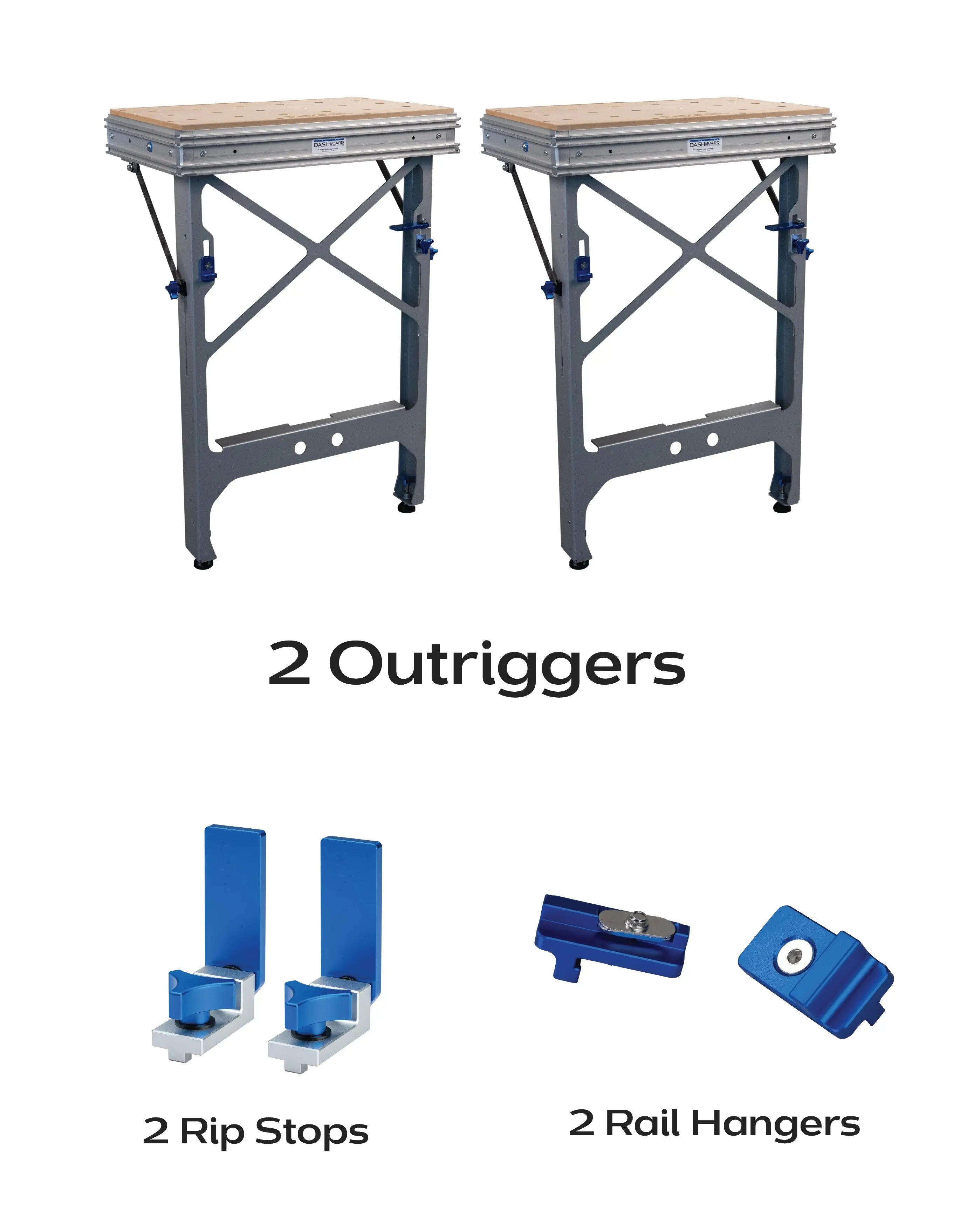

What’s in the box:

• 2 Outriggers
• 2 Rip Stops
• 2 Rail Hangers

Materials:

• Anodized and powder-coated aluminum
• MDF
• Rubber Feet
• Carbon fiber

Specifications:

• Height: 35.5” (900mm) with leg levelers to allow tool-free adjustment on uneven surfaces, while the mounting hardware is easily tuned so the top surface planes out with your tabletop.
• Depth: 15.875” (400mm) front-to-back
• Length: 24.5” (622mm)
• Grid of 20mm holes for various uses
• Dash-Board frame extrusion with dual clamp tracks
• Integrated Rail Hanger mounts
• Accepts our Door and Panel Supports

​Key Functions:

• Crosscut full sheets
• Rip full sheets
• Accurately split full sheets
• Offcut support
• Expands Guide Rail Bracket and Track Star capacity
• Expands Parallel Guide and fence mounting
• Allows vertical work with Door and Panel Supports
• Convenient rail storage
• Clamping surface
• Set Rip Stops and Parallel Guides on the right side of the blade
• Use your imagination!

​Key Features:

• Height-adjustable for compatibility with various work tables
• Worktop with 20mm holes
• Comfortable all-metal knobs
• Integrated Rail Hangers
• Strong, rigid Dash-Board leg
• Leg Levelers for uneven surfaces
• Folding & readily portable
• Same width as our benches

​

Product Safety:

• Be mindful of pinch points
• Secure all hardware before use to avoid accidents or injury.
• Use appropriate lifting form to avoid injury
• Keep out of reach of children
• Workbenches and Outriggers not intended as standing platforms
• For safest operation please keep static loads below 300 lbs or 136 kg
• Disassembly or product alterations are not recommended
• Do not use products for uses other than intended

Frequently Asked Questions

• What is included in the Outrigger Bundle? The Outrigger Bundle includes 2 Outriggers (folding workbench platforms), 2 Rip Stops, and 2 Rail Hangers. Ordering the bundle costs less than buying these components à la carte.
• Do the Outriggers work with my Festool MFT3 or other non-Dash-Board bench? Yes, the Outrigger Bundle works with the Dash-Board, ShortCut, Festool MFT3, Festool 1080, Benchdogs Ultra MFT, Kreg ACS, TrackTubes, T-slot extrusion tables, wood-frame tables with T-track, and DIY benches at the recommended 35.5" to 36" working height.
• Does the Outrigger Bundle include a workbench? No, the Outrigger Bundle does not include a workbench. It is a bench-extension bundle designed to be paired with a compatible workbench purchased separately.
• What is the difference between the Outrigger Bundle and the Platinum Bundle? The Outrigger Bundle is a focused bench-extension kit. The Platinum Accessories Bundle includes the complete Pro Accessories Bundle plus the complete Outrigger Bundle in one order. If you already own the Pro Bundle, the Outrigger Bundle is the standalone upgrade. If you're building from scratch and want the full kit, the Platinum Bundle is the better value.
• Can I store the Outriggers when I'm not using them? Yes, the Outriggers feature a folding leg design that collapses flat for storage against a shop wall, in a vehicle, or on a rack. When you need full-sheet capacity, deploy them. When you don't, fold them down and reclaim the floor space.
