The DEWALT DNP617 Centering Cone for Fixed Base Compact Router is a router alignment accessory for users who want the sub-base centered correctly during setup or adjustment. This is a router accessory designed for centering a fixed base compact router sub-base. Model Number: DNP617. If you swap bases, loosen bases for adjustment, or want cleaner bit-to-base alignment, this is the small setup tool that makes the job easier.

What matters here is accuracy. The DNP617 uses a steel pin and a durable plastic cone to help line up the sub-base with the router collet. In practical terms, that means less eyeballing and a better chance of getting the opening centered where it should be. When the base is centered correctly, router bits track more consistently through guide bushings and base openings.

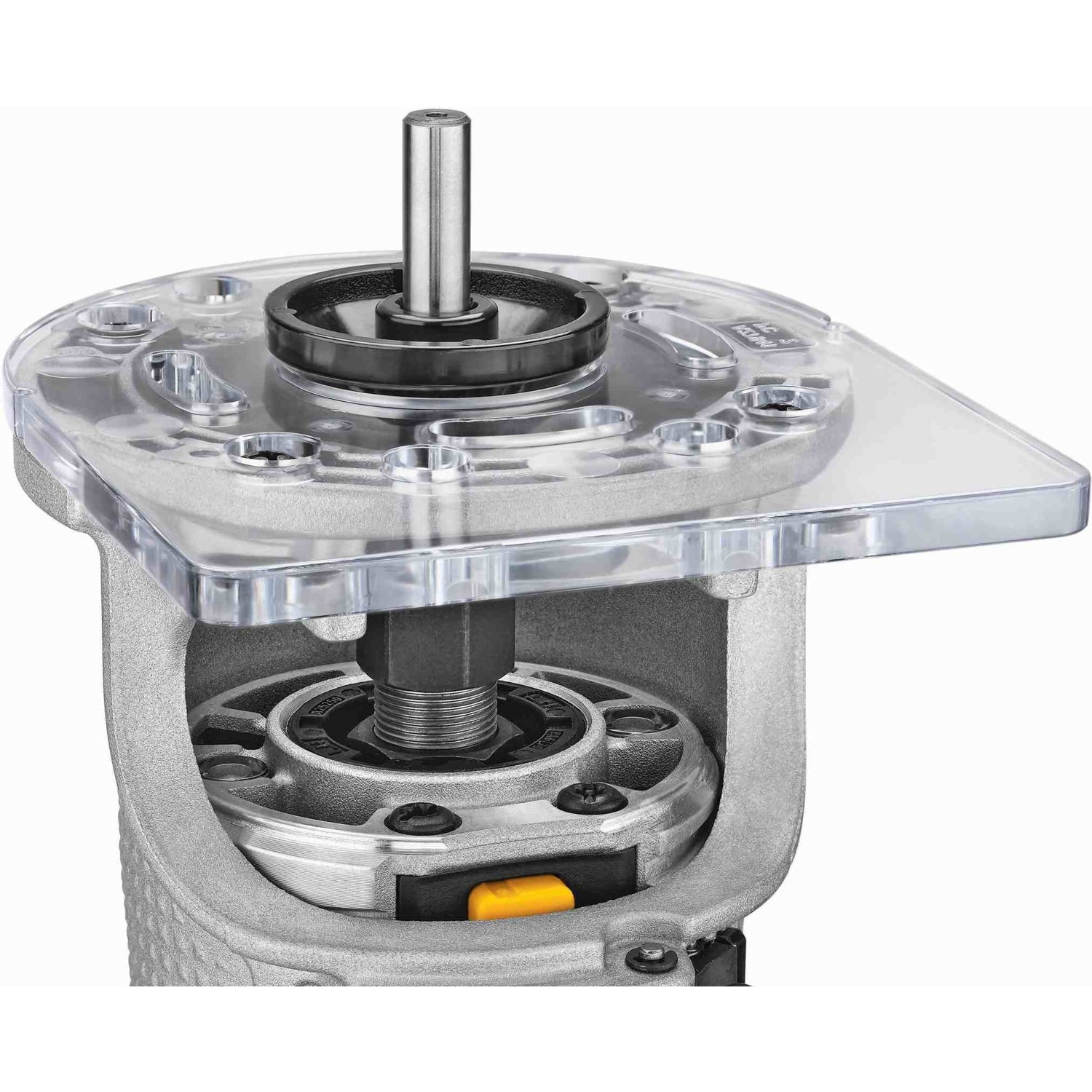

Setup is straightforward. DEWALT spells it out clearly: place the pin in the router collet, place the cone on the pin, and tighten the screws on the sub-base. That simple process is why this accessory is useful on the bench and on the job. It is not a flashy add-on, but it solves a real problem fast.

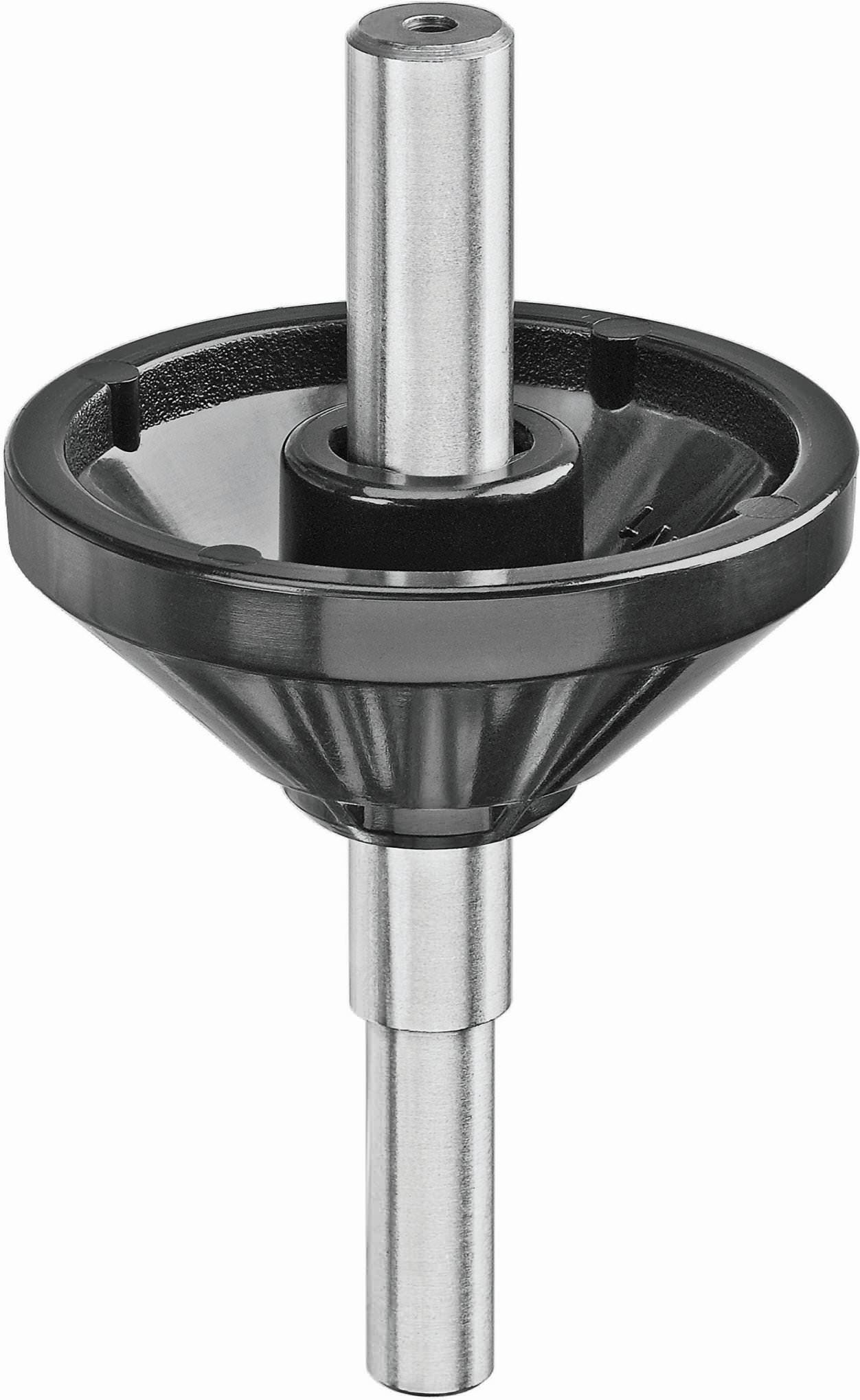

The design is simple on purpose. A steel pin gives the tool the rigidity needed for alignment, while the plastic cone helps position the base without overcomplicating the process. At just one piece and roughly 0.09 lb, it is easy to keep in a router case or drawer so it is there when you need to reset a base after maintenance, cleaning, or replacement.

Compatibility is the big buying question with a product like this. It is specifically compatible with the DEWALT DWP611 compact router, and the product name identifies it as a centering cone for a fixed base compact router. If you are already running that platform and want a cleaner, more repeatable way to center the sub-base, this accessory makes sense.

Who should buy it? Woodworkers, trim carpenters, cabinet installers, and serious DIY users who care about router setup accuracy. If you only touch your router once a year, you may not think much about centering. If you change bases, tune tools, or expect consistent results, the DEWALT DNP617 Centering Cone for Fixed Base Compact Router is one of those small accessories that earns its keep quickly.

DEWALT DNP617 Centering Cone for Fixed Base Compact Router

This is one of those small router accessories that does a very specific job and does it well.

• Who it's for: Router users who care about accurate setup, especially woodworkers, trim guys, and anybody tuning a DEWALT compact router base.
• Why it stands out: The steel pin and cone design gives you a simple, repeatable way to center the sub-base instead of eyeballing it and hoping for the best.
• Worth knowing: This is not a general-purpose router add-on. It is a setup accessory, so its value shows up when you are adjusting or changing bases and want alignment done right.

• What is this tool used for? It is used to center the sub-base on a fixed base compact router during setup or adjustment.
• How does the DNP617 work? You place the pin in the router collet, place the cone on the pin, and then tighten the screws on the sub-base.
• Is it compatible with the DEWALT DWP611? Yes. It is specifically compatible with the DEWALT DWP611 compact router.
• What is it made from? It uses a steel pin and a durable plastic cone.
