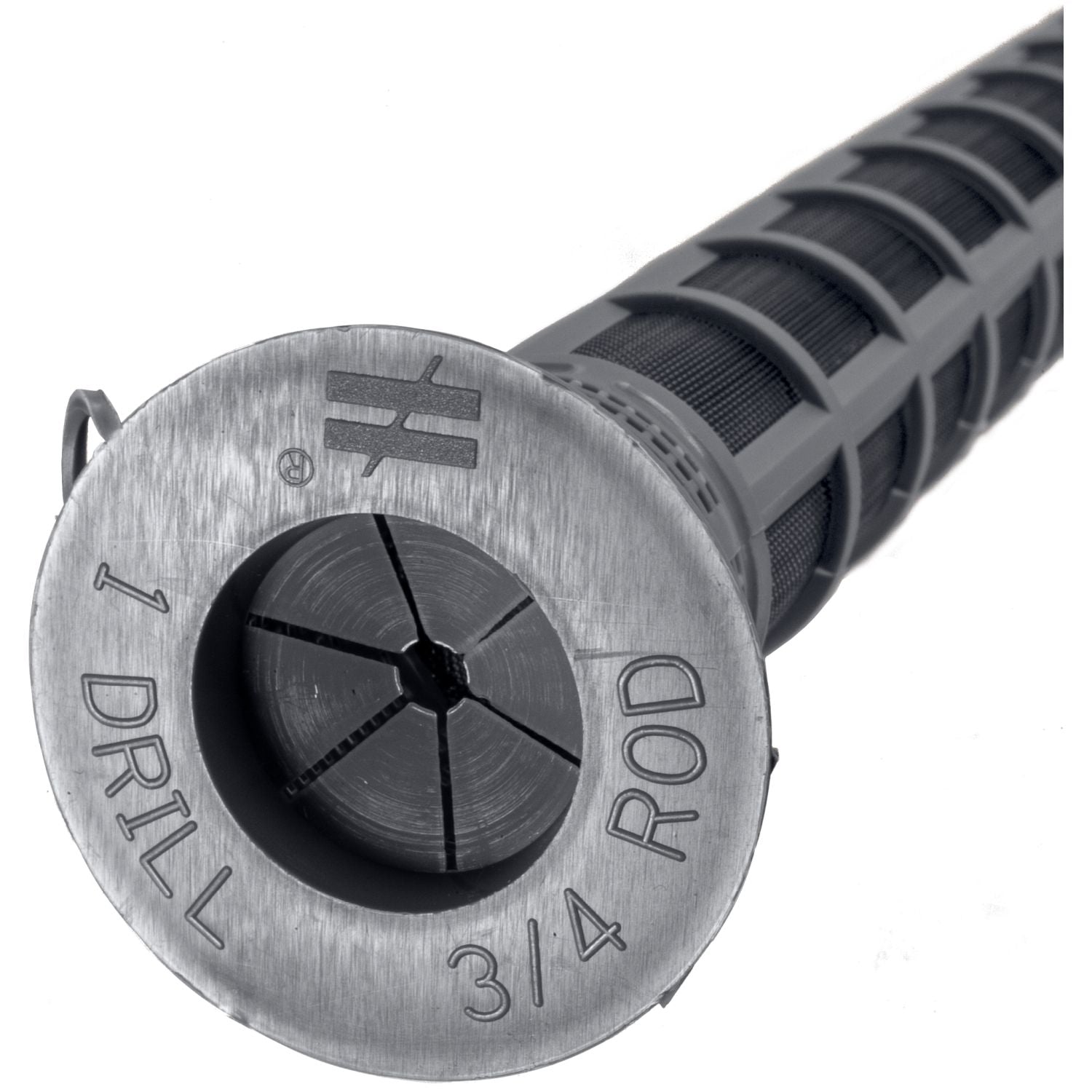

• Integral cap centers the rod and displays drill bit and rod diameter
• Flanges prevent the screen tube from slipping into over-drilled holes
• Formula-specific woven mesh design controls flow of adhesive out of the screen
• Uniform coverage of adhesive on the rod results in higher loads than for rods installed with standard screen
• Open-mesh collar allows extra adhesive flow in hollow block applications
• Caution: Screen tubes are designed for a specific adhesive type; epoxy screen tubes must be used with ET-3G™ formulation
• For rod diameter: 3/8 in.
• Hole size: 9/16 in.
• Length: 6 in.

Simpson Strong-Tie makes dispensing adhesives easier than ever by providing a variety of manual and pneumatic tools as well as accessories designed to make dispensing adhesive as efficient as possible. Screen tubes are vital to the performance of adhesive anchors in base materials that are hollow or contain voids, such as hollow block and brick. The Simpson Strong-Tie Opti-Mesh screen tube with woven mesh insert provides the economical advantage of a plastic screen tube while providing superior performance to steel screen tubes and competitive plastic screen tubes.

• Integral cap centers the rod and displays drill bit and rod diameter
• Flanges prevent the screen tube from slipping into over-drilled holes
• Formula-specific woven mesh design controls flow of adhesive out of the screen
• Uniform coverage of adhesive on the rod results in higher loads than for rods installed with standard screen
• Open-mesh collar allows extra adhesive flow in hollow block applications
• Caution: Screen tubes are designed for a specific adhesive type; epoxy screen tubes must be used with ET-3G™ formulation
• For rod diameter: 3/8 in.
• Hole size: 9/16 in.
• Length: 6 in.
