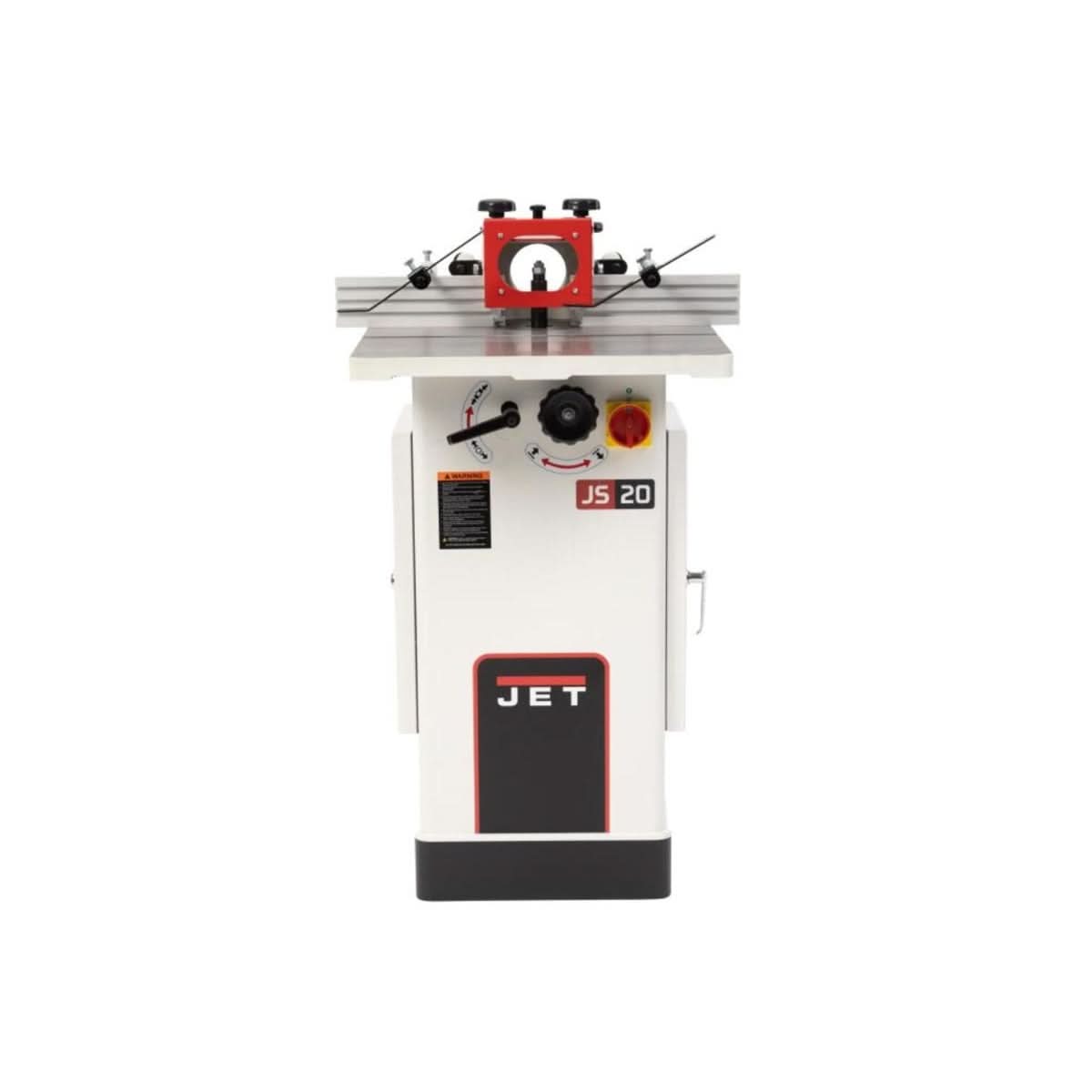

The JET JWS-20CS Shaper 1.5HP is a floor-standing spindle shaper for furniture makers, cabinet shops, and serious woodworkers who need repeatable profiles, raised panels, and edge treatments. This is a spindle shaper designed for shaping edges and profiles in solid wood with shaper cutters or, using the included collets, router bits. Model Number JWS-20CS (JET stock number 724020) runs a 1-1/2 HP single-phase motor on a compact 18" x 20" table.

The motor is a totally enclosed, fan-cooled (TEFC) 1-1/2 HP unit rated at 115/230 V, prewired for 115 V and drawing 15 A at 115 V or 7.5 A at 230 V. That means you can run it on a standard 115 V circuit in a home shop and rewire to 230 V later if you add a dedicated circuit. TEFC construction keeps fine wood dust out of the motor, which matters on a machine that spends its life throwing chips.

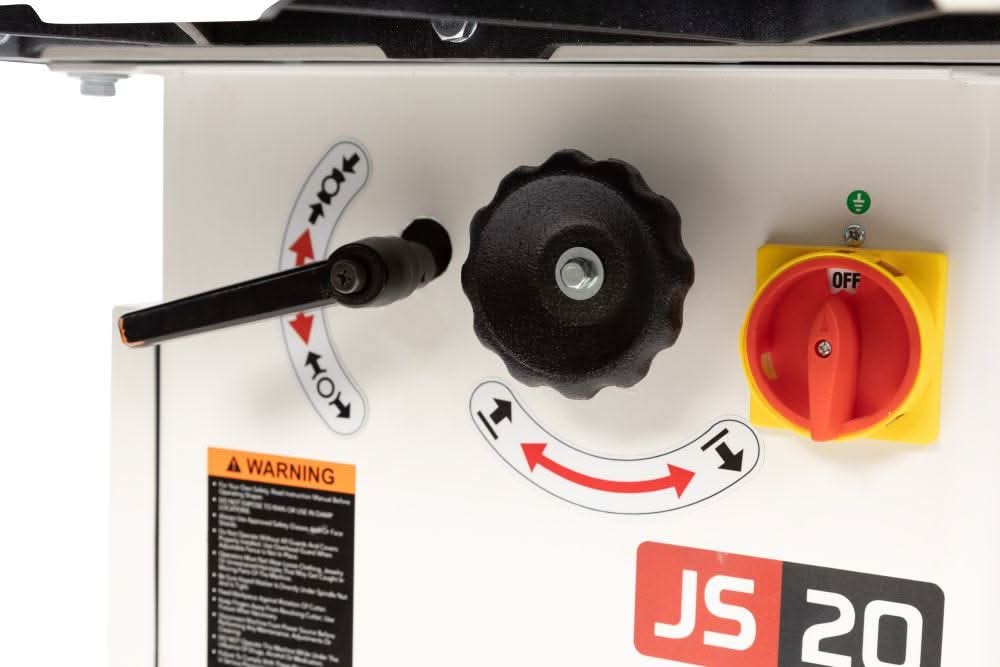

The spindle runs at 8,000 or 10,000 RPM and reverses with a forward/reverse switch. Reversing lets you flip a cutter and feed from the opposite side, so you can position the cutter below the work for safer cuts or handle grain direction changes without remounting the stock. Choose the lower speed for larger-diameter cutters and the higher speed for smaller cutters and router bits for a cleaner finish.

Two interchangeable spindles come with the machine: 1/2" and 3/4". Capacity under the spindle nut is 2-3/4" on the 1/2" spindle and 3" on the 3/4" spindle. JET also includes 1/4" and 1/2" router collets, so you can run your existing router bits on the shaper for jobs where a full shaper cutter isn't necessary. The table opening is 5-3/16" in diameter, with inserts for 1-5/8" and 3" openings to close the gap around smaller cutters.

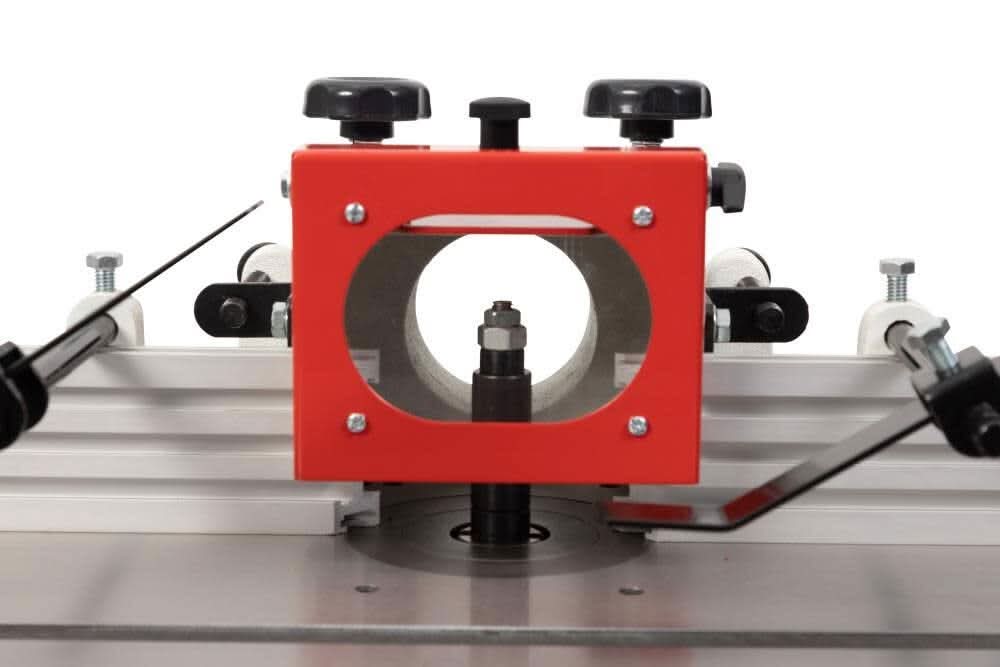

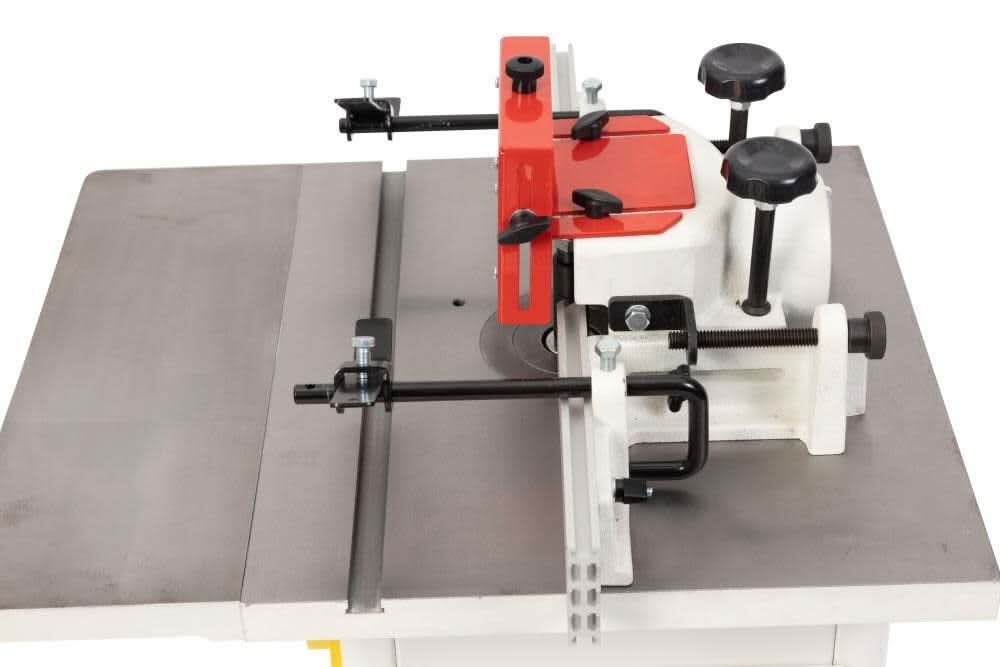

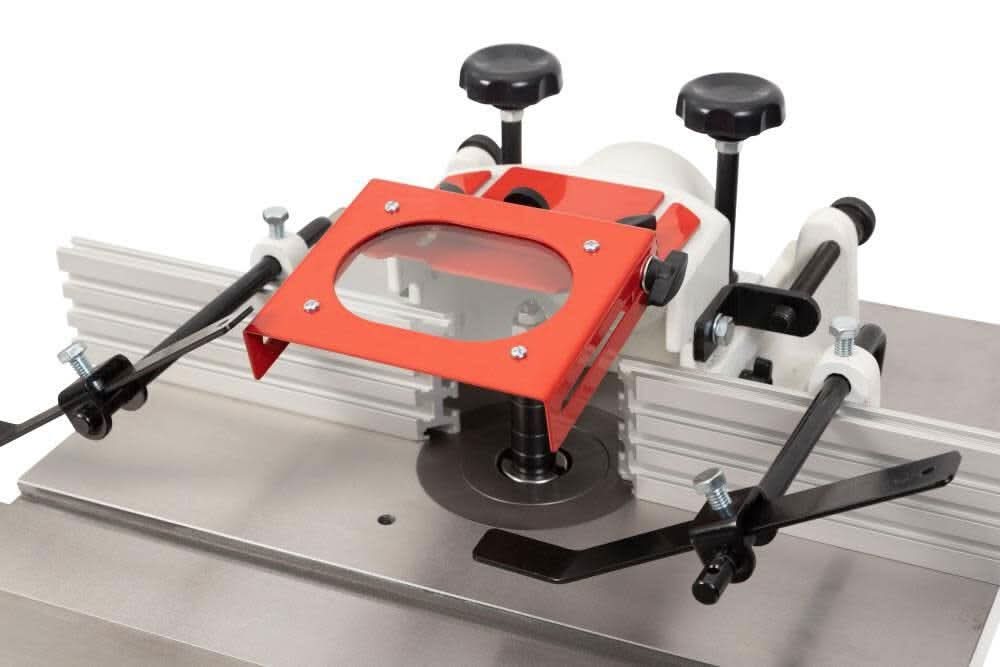

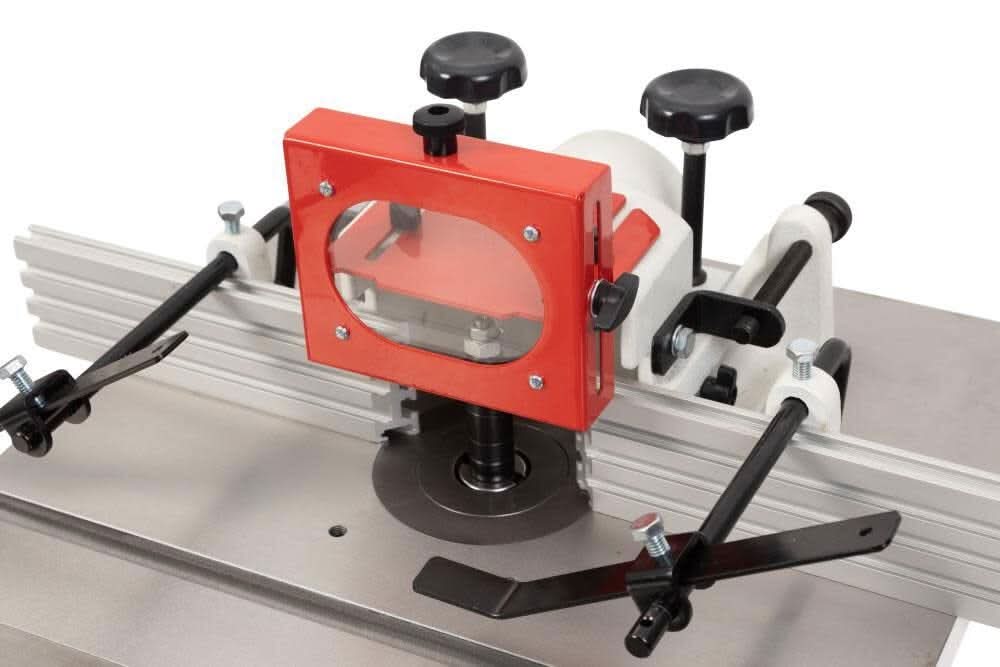

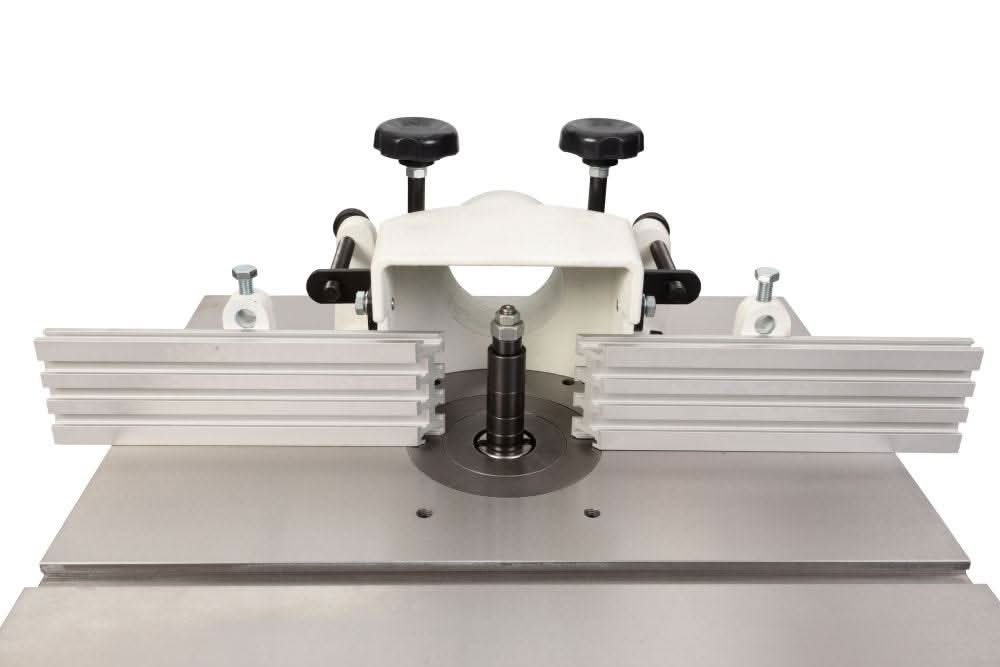

Fence setup is where a shaper earns or loses accuracy. The JWS-20CS has independent left and right fences, each 10" x 3", with micro-adjustment and zero-clearance capability. You can offset the outfeed fence for profiles that remove the full edge, then fine-tune the setting instead of tapping fences with a mallet. A 3/4" x 3/8" T-slot in the table carries the included miter gauge for end grain cuts such as cope cuts on rails.

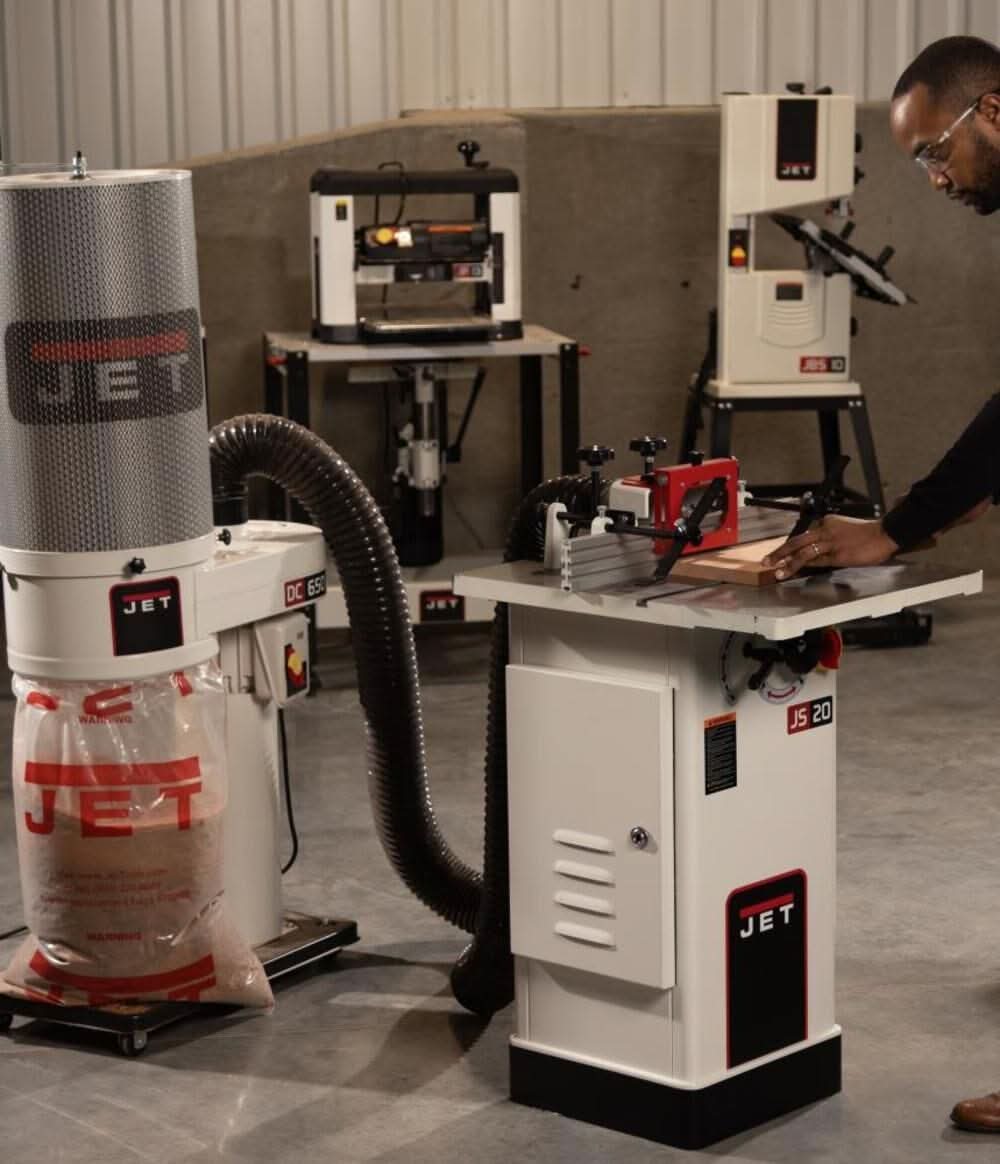

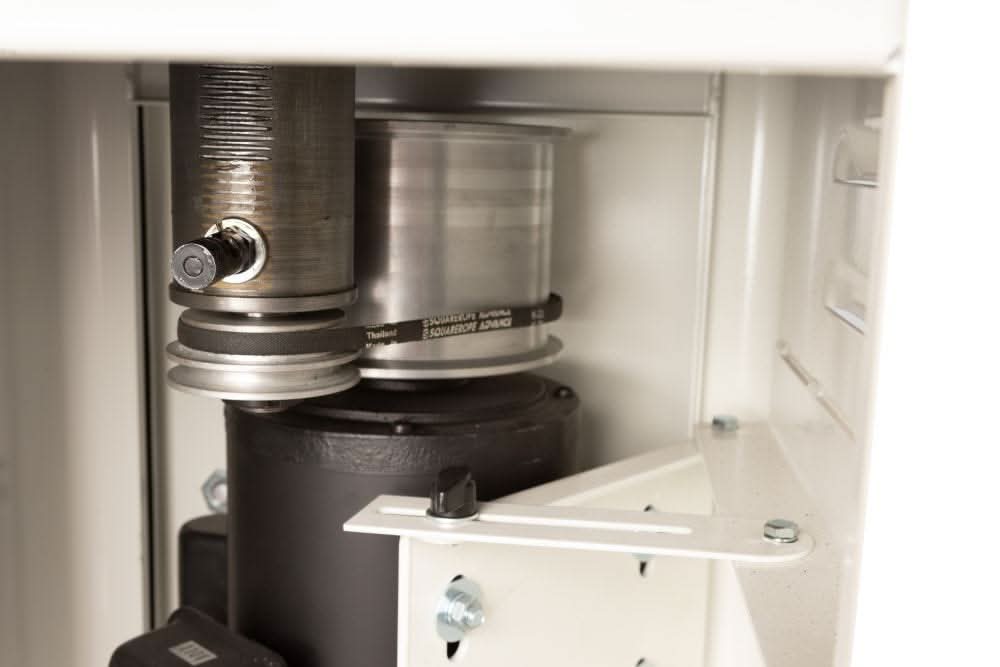

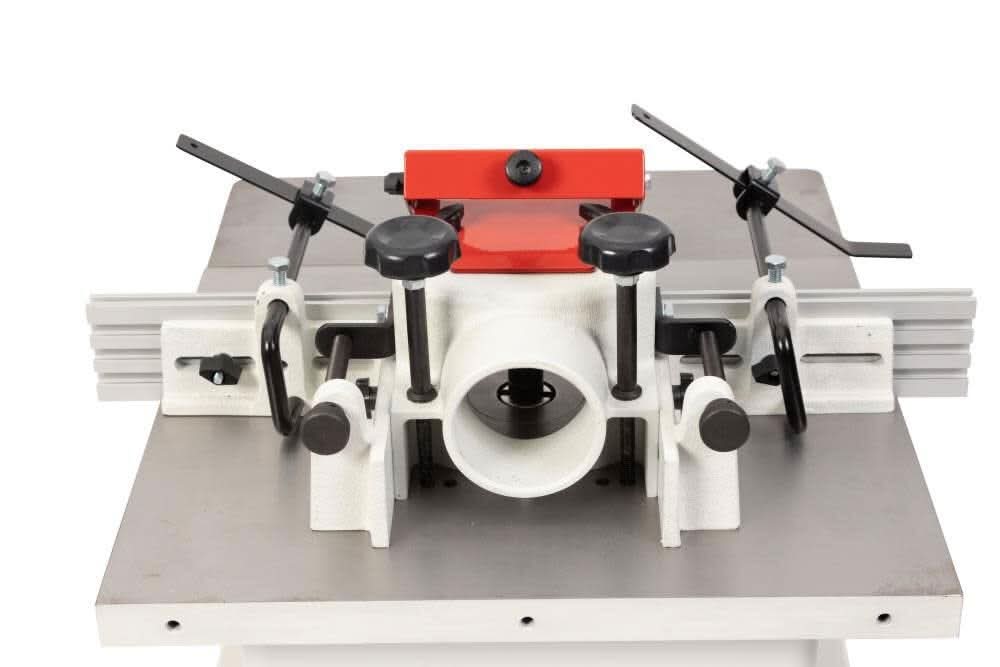

The heavy-duty steel stand is fully enclosed, which adds mass and contains chips. A removable cover gives easy access to the motor and drive. Dust leaves through a 4" dust chute, and hooking it to one of the shop's dust collectors keeps chips off the table and away from your fence setup. The table sits 33-1/2" off the floor, and the whole machine weighs approximately 201 lbs, heavy enough to stay planted but still movable in a small shop.

Who should buy it? Woodworkers moving up from a router table who want more power, more spindle capacity, and real shaper cutters, and small shops that need a dedicated profiling machine that doesn't take up much floor space. If you plan to run large raised-panel cutters all day or run production work with a power feeder, step up to a 3 HP shaper instead.

The JET JWS-20CS Shaper 1.5HP Is the Logical Next Step After a Router Table

Two spindles, router collets, split micro-adjust fences, and a reversible motor give you real shaper capability in a footprint most shops can spare.

• Who it's for: Furniture makers, cabinet builders, and serious hobbyists who have outgrown a router table for panels and profiles.
• Why it stands out: Reversing, two speeds, two spindle sizes, and router collets cover most profiling jobs a small shop does, all with a 115 V plug.
• Worth knowing: At 1-1/2 HP, take large raised-panel profiles in more than one pass. If you run big cutters regularly, the JET JWS-25X 3 HP shaper is the heavier option. Pair the machine with quality shaper cutters to get the most out of it.

• Can I run router bits on the JWS-20CS? Yes. It comes with 1/4" and 1/2" router collets.
• Does it run on household power? It is prewired for 115 V and draws 15 A. It can be rewired for 230 V at 7.5 A.
• Which spindle sizes are included? Interchangeable 1/2" and 3/4" spindles.
• Is a miter gauge included? Yes. A miter gauge runs in the table's 3/4" x 3/8" T-slot.
