Stabila 04500TR LAR 160 G Rotation Laser Set With Tripod and Grade Rod

$998.00
In stock
Fast Free Shipping

Earn Tool Nut points on this item!

Product Details

Description

STABILA's LAR 160 G Rotary Laser is not only quick to setup and easy to use, it's also one of the top choices for industry professionals - and for good reason. Incredibly accurate and precise, the LAR 160 G features GREENBEAM technology to provide improved visibility on the jobsite. At four times more visible than red lasers, it's easier to track and easier to level. Along with a rugged IP 65 dustproof and waterproof housing, the LAR 160 G features a shock-absorving molded case to help protect against damage from falls.

  • Fully automatic motor-driven laser features a leveling accuracy of ±0.1 mm/m and fast self-leveling in under 20 seconds
  • STABILA GREENBEAM technology improves visibility of the laser by up to four times more than a standard red laser
  • Four laser functions including horizontal, vertical, plumb-line and right angle for maximum versatility on the jobsite
  • Protection class IP 65 means the LAR 160G is both waterproof and dustproof to handle the elements
  • Shock absorbent STABILA soft grip casing protects the internal components and optics from damage caused by falls and impacts
  • Simple to use thanks to a three button control system with On/Off, Tilt Mode, and Manual Mode functions
  • Easy-to-access battery drawer makes battery swapping quick and easy, even on the tripod
  • Large working area of up to 600 meters diameter with the REC 160 RG set receiver
  • Two 5/8" threads integrated into the housing for mounting on tripods and wall mounts
  • Target plate with magnetic holder and integrated crosshair allow users to accrucately line up the laser quickly and efficiently

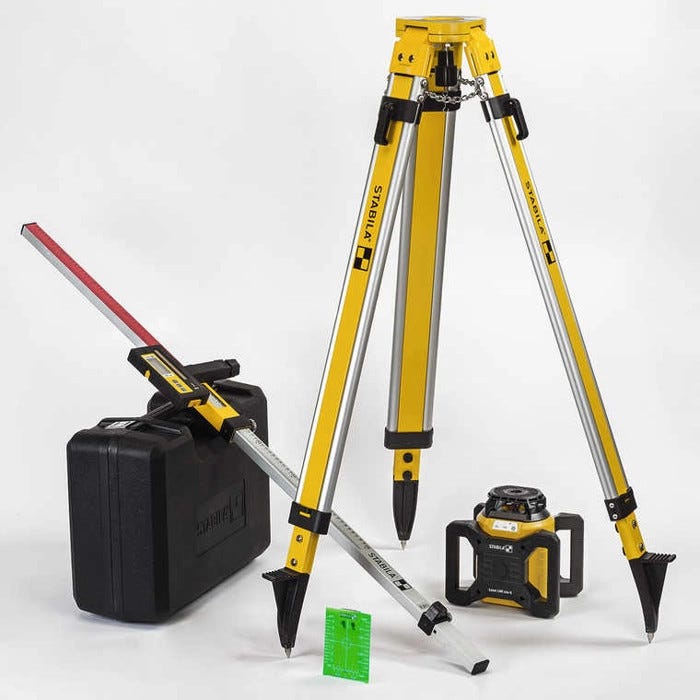

What's In The Box

  • (1) LAR 160 G Green Beam Rotary Laser
  • (1) REC 160 RG Digital Receiver
  • (1) 36" - 68" Fixed Tripod
  • (1) 52" - 84" Hi-Lo Elevation Rod
  • (1) Target Plate w/ Magnetic Holder
  • (1) Hardshell Case

High Performance Receiver

The LAR 360 G features a high performance REC 160 RG digital reciever, which enables a working area of up to 600 meters in diamter. A massive range for layout work on larger jobsites where the utmost and highest level of accuracy is needed to get the job done right.


Durable Design & Housing

The LAR 360 G features rugged construction, with an impact protection from a maximum height of 1.8 meters. Durable rubber overmolds offer enhanced shock absorption for added protection to internal components, and an IP 65 protection rating ensures water and dust are never an issue.


Specifications
SKU #: 04500TR

Technical data

Laser class
2
Output
< 1 mW
Laser wavelength
510 - 530 nm
Self-levelling range +/-
5°
Levelling accuracy +/-
0.10 mm/m
Diameter of working area for set receiver
600 m
Operating life
20 h
Battery type
D
Protection class
IP 65
Tripod connection
5/8"
